Intercooler Pump Replacement CWA400 (Hellcat Fitment)

Sick and tired of the factory intercooler pump?
This is the solution you need!

The factory pump likes to suck fluid not push like a normal pump, for this reason, the pump actually requires a flow restriction to run!
The flow restriction dramatically slows your flow rate which then increases the intake temps when under boost (when you need as much flow as possible).

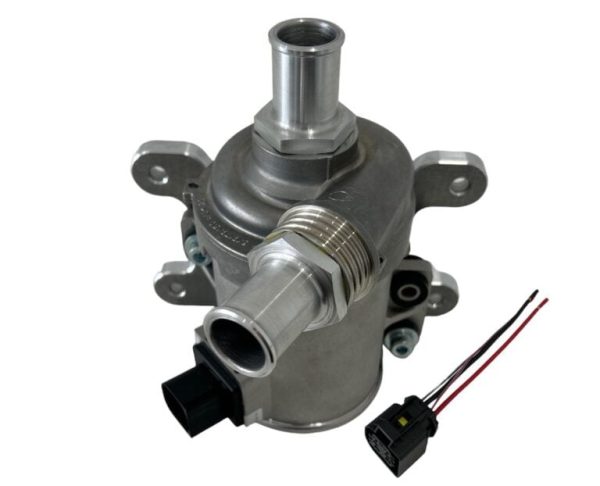

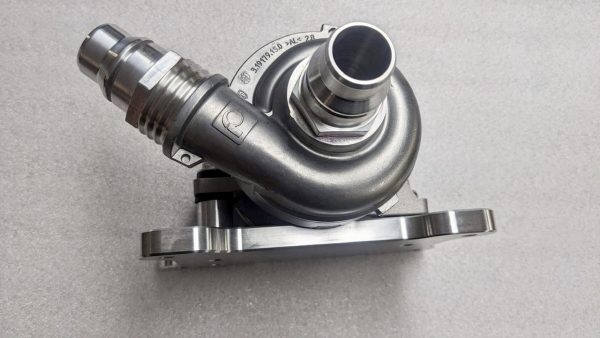

We have taken the stock pump, replicated the water ports to ensure your factory hoses simply plug onto the pump.

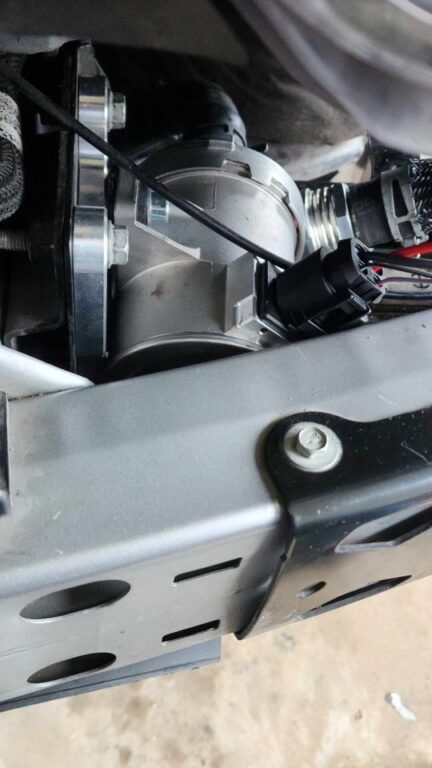

We have then replicated the mounting bracket to ensure the pump bolts up exactly the same way as factory.

Electrical wiring:
Simply pick up power from the fuel pump fuse, have that power trigger a relay that has its own power supply.
Have the relay power supply go to both positive wires on the pump.
Ground both negative wires and you are done.

If you are looking for a powerful aftermarket pump this is it, on car flow rate data (the only data that counts – advertised flow rates are from one empty fish tank into another and do not account for intercooler flow restrictions, so a pump that can flow under high pressure is essential) And the CWA400 is exactly that pump! High flow/High Pressure

The Pierburg CWA400 shows extremely good flow data for pressure, which is exactly what we are chasing, most pumps simply cannot push through the flow restrictions of intercoolers, heat exchangers and our interchiller. With the CWA400 we are seeing on car flow rates around 35L per min (9.24gal per min)

We have our CWA400 pumps programmed to run at their max speed, without the need of a PWM controller.
Simply hardwire the pump, as per the above wiring diagram and it will run, no need for expensive controllers. Just wire it up! You will need to disable your factory pump in your tune.

FII does not offer warranties on any electronics!
