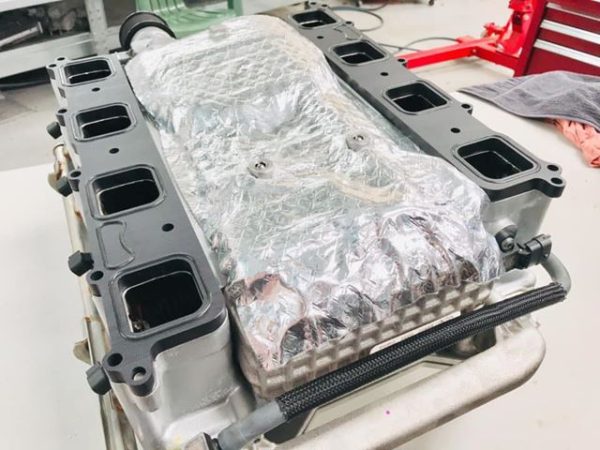

Forced Inductions Interchiller 1″ Blower Spacers and Blanket (Hellcat)

You’ve seen the results others have had from our 1″ hellcat spacers
The Hellcat spacer is 1″ thick, made from the same billet composite material we have custom made in Germany to our own specifications to withstand very high temperatures and pressure as well as having extremely good thermal reduction properties. You can see exactly how strong our material is here: http://fiinterchillers.com/lsa-lid-spacer-strength-test/

Why 1″ thick? simple it’s 2.5x thicker than our current hellcat spacers, increasing the insulation properties resulting in:
1. Reduced Intake air temperature
2. Lower blower running temperature
3. Help reduce IAT sensor reading reversion up the intake port (based on your camshaft)
4. Better isolation of the IAT sensor
5. Injector will be back 1″ further which will allow the fuel to better atomize
6. Injector will be back 1″ further which will allow more fuel to have a cooling effect on the air charge

The IAT sensor doesn’t stand a chance to ever read true air temperature (as you have likely experienced).
The 1″ Hellcat Spacer will help isolate your sensor even more than our 10mm plates the insulating properties of the spacer will not allow the sensor to suffer heat soak as much as it currently does.

(Spacer is machined to suit the cylinder head and is port matched at room temperature – spacer will expand and contract with temperature, if they do not fit do not machine them, simply put them in the sun to grow them or gently heat them with a heat gun, when too big put in the freezer)
